Let's get packaging

frozen fries vertical packaging

As a manufacturer of frozen fries, you know the importance of efficiency, hygiene and maximum uptime. The pressure on your production process is high, while at the same time you have to deal with tight margins and increasingly stringent quality standards. VH Vertical Packaging offers advanced vertical packaging machines designed specifically to meet the demands of the frozen food industry, with a focus on reliability, flexibility and low total cost of ownership.

discover the<br> passion of<br> <span>vh vertical packaging</span>

Frozen freshness secured

Multiple sealing systems
for optimal
frozen food packaging

Our Centurion has already helped many customers achieve optimal packaging for frozen potato products such as French fries. Our machine can be equipped with different sealing systems, depending on your needs. The choice of film is decisive in this regard.

The traditional PTC sealing system ensures accurate pulse sealing, so that the correct temperature is always achieved across the entire sealing width. The Teflon tape prevents the film from sticking to the sealing bar and the Ropex controllers are controlled from the machine control system. The sealing bars can be replaced via a quick-change system, minimizing downtime in the event of damaged Teflon.

<span>Alternative sealing<br></span> systems and advantages<br> in film use

Alternative sealing
systems and advantages
in film use

In addition to PTC, we also offer the Omniseal system. This system is characterized by its ease of use and reduced downtime. Thanks to constant heating, the right clamping device, and our own coating, we can process PE films without any sticking. The seal strip only needs to be re-treated after approximately 1.2 million packages.

Finally, we also work with Ceetak, a system similar to PTC but without Teflon tape. With this system, we save 7 mm of film per package because there is no longer any curt. The bag is cut in the middle of the seal and the system is fully integrated into the control system.

<span>Film trends,<br></span> seam quality, and<br> efficient packaging <br>in outer boxes

Film trends,
seam quality, and
efficient packaging
in outer boxes

The films used in the frozen fries industry are becoming thinner every year. With the right format settings, we can currently process film as thin as 28 microns. The corresponding format set guarantees the quality of the longitudinal seam. The piston action of the product is made damage-free by means of air vibrations, which ensures a perfect longitudinal seam.

Potato processors want to pack as many packages as possible in a shipping box. With the right perforation setting, we can perforate optimally so that secondary packers can easily process the packages. In combination with air expulsion under the jaws, this ensures an efficient process and a neat end result.

Packaging options

Pillow bag

X: 57 - 440 mm
Y: 40 - 950 mm
Z:
Gusseted bag

X: 30 - 380 mm
Y: 60 - 900 mm
Z: 10 - 140 mm
Flat bottom bag

X: 30 - 380 mm
Y: 60 - 800 mm
Z: 30 - 85 mm
3-Side Sealed Bag

X: 60 - 380 mm
Y: 60 - 380 mm
Z:
Brick bag

X: 44 - 230 mm
Y: 60 - 230 mm
Z: 42 - 102 mm
Stand up pouch

X: 80 - 380 mm
Y: 120 - 380 mm
Z: 40 - 100 mm
Flex can

X: 44 - 300 mm
Y: 44 - 300 mm
Z: 42 - 140 mm
Corner creased bag

X: 30 - 380 mm
Y: 60 - 800 mm
Z: 30 - 140 mm
Quad seal

X: 44 - 380 mm
Y: 60 - 800 mm
Z: 42 - 140 mm
Stand Pouch Simple

X: 40-120 mm
Y: 40-150 mm
Z: 20-40 mm
Dispense Pouch

X: 20-360 mm
Y: 40-250 mm
Z:

Our vertical<span><br>packaging machines</span>

Our vertical
packaging machines

VH Packaging offers a variety of packaging machines to suit your specific needs:

Basic vertical packaging machines: ideal for efficient and effective packaging of standard portions.

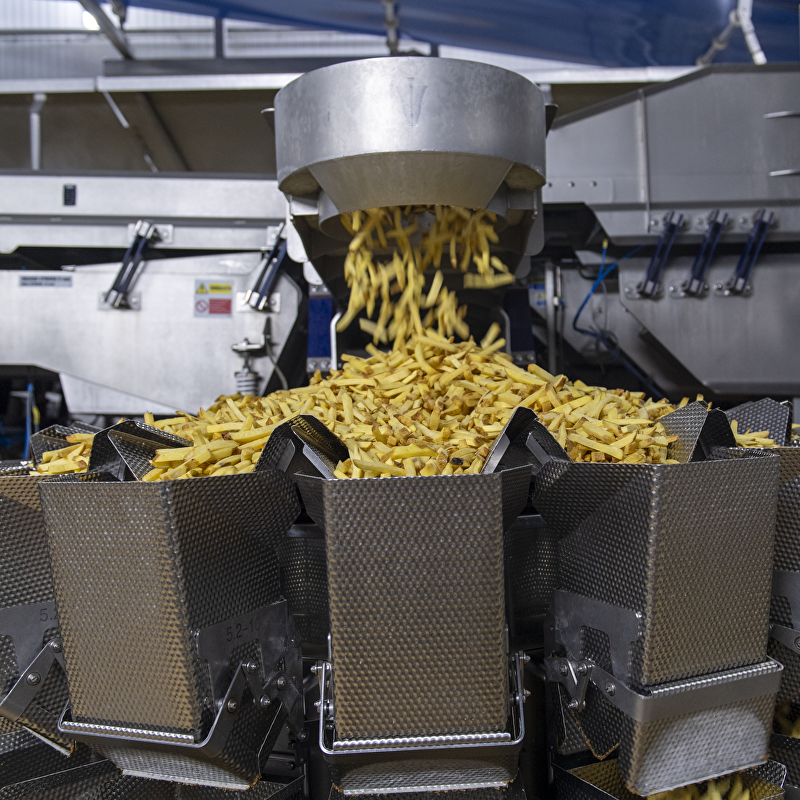

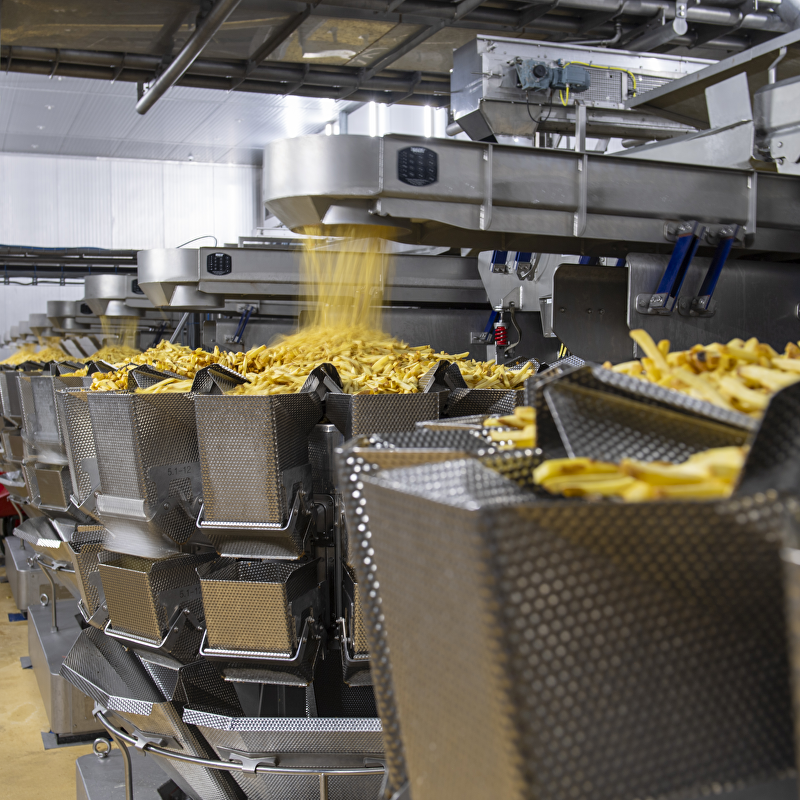

Advanced multihead weighers: perfect for accurate weighing and packaging of mixed vegetables.
Fully automated packaging lines: maximize productivity and consistency with minimal manual intervention.

Each machine can be customized with features such as anti-slip technology and different sealing methods to ensure the freshness and quality of your produce.
